A microscopic weld defect missed during production can cascade into a billion-dollar recall affecting millions of vehicles. Manual inspection cannot prevent this—production lines move too fast, human attention wavers, and micron-level defects remain invisible to the naked eye.
Automated vehicle inspection systems are the answer. Using computer vision, sensors, and machine learning, these systems detect manufacturing defects at production speed with micron-level accuracy across body-in-white structures, paint surfaces, powertrain components, battery modules, and final assemblies. They reduce defects by 35%, cut warranty costs by 20%, and enable surgical recall precision through complete digital traceability.
What began as simple presence-verification tools has evolved into critical infrastructure that enables proactive process optimization across the entire automotive value chain.
Key Takeaways The Problem: Modern vehicle complexity requires inspection accuracy beyond human capabilities at production speeds—where a single overlooked defect can trigger billion-dollar recalls.The Cost: Poor traceability contributed to Takata's 67 million vehicle recall, while automated tracking limited GM's recall to just 4 vehicles. Automated inspection reduces warranty costs by 20% and defects by 35%.The Solution: Automated systems use AI, machine vision, and sensors to detect defects as small as 10 microns at production speed. Systems achieve 90-99.5% detection accuracy and deliver ROI within 12-18 months.Core Applications: Body-in-white verification, paint surface inspection, powertrain measurement, battery module verification, and undercarriage inspection across all production stages.Implementation Strategy: Start with safety-critical applications where ROI is clearest, then expand systematically. Expect 6-12 months deployment with costs ranging from $5,000 to $1 million+ depending on complexity.To understand why automated inspection has become essential, we must first examine the fundamental challenges that render manual inspection inadequate for modern automotive production.
The Manufacturing Challenge: Why Manual Inspections Fail Next-Generation Vehicle Complexity Automotive industry inspection challenges grow with each model year. Modern vehicles contain thousands of precision components that must work together under extreme conditions:
3,000+ spot welds per vehicle requiring verification of nugget diameter and fusion qualityHigh-voltage EV battery packs where microscopic porosity or contaminants can cause thermal runawayAutonomous sensor mounting with tolerances in fractions of a degree—1° deviation miscalculates obstacle positions by meters at highway speedsThese precision requirements expose the fundamental limitations of manual inspection methods. First, manual inspections cannot achieve micron-level accuracy required by modern components. Beyond precision, statistical sampling—inspecting one in every ten parts—leaves massive quality gaps that allow defects to reach customers. Compounding these issues, production lines operate at speeds where vehicles move through stations every 60 to 90 seconds, making comprehensive vehicle inspections by the human eye impossible.
The financial consequences of these inspection failures are severe. The "1-10-100 hundred rule" dictates that defect correction costs increase by ten at each production stage. Detecting a surface flaw in raw sheet metal before stamping costs a baseline amount. Identifying that flaw after stamping, welding, painting, and assembly increases costs one-hundred-fold. When defective vehicles reach customers, warranty claims and recalls push operational costs exponentially higher while creating lasting reputational damage.
Labor Shortages and Ergonomic Constraints The automotive industry also faces critical workforce challenges driving automation adoption:
Retirement wave: Experienced quality inspectors retire, taking decades of institutional knowledge with themRecruitment difficulties: Younger workers avoid repetitive visual inspection roles, preferring positions in digital manufacturing or roboticsErgonomic risks: Vehicle inspection requires awkward postures to examine underbodies, engine bays, and roof lines—prolonged exposure leads to musculoskeletal injuriesThese challenges create an environment where manual inspection cannot succeed. The solution lies in leveraging advanced technologies that fundamentally transform how quality is verified.
How Automated Inspection Systems Transform Manufacturing Machine Vision Technology: Superhuman Accuracy Automated vehicle inspection systems address inspection challenges through computer vision manufacturing capabilities that exceed human limitations. These AI-powered systems inspect every component at production speed while detecting defects and generating real-time data for immediate process corrections.
Key capabilities include:
Dimensional precision: 10 microns—one-tenth the diameter of a human hairSurface defect detection: 10-15 microns on glossy painted surfaces via deflectometryUnwavering consistency: Identical standards throughout extended production runs without fatigue or attention lapsesWhile machine vision hardware provides extraordinary measurement precision, the real breakthrough comes from artificial intelligence's ability to make sense of this data in ways that mimic—and often exceed—human judgment.
Artificial Intelligence and Deep Learning in Defect Classification While sensors provide data, artificial intelligence provides understanding. The automotive industry has shifted from rule-based systems to machine learning defect detection systems powered by deep learning that handle complexity previously requiring human judgment.
Traditional systems rely on explicit programming—reject parts if dimensions fall outside specifications. This works for quantitative measurements but struggles with qualitative assessments on textured surfaces where a cosmetic weld bead might vary slightly while remaining structurally sound, or where differentiating a scratch from natural grain requires contextual understanding.
Deep learning is a machine learning approach that uses convolutional neural networks to learn patterns from labeled data rather than following programmed rules. These systems learn from thousands of labeled images, identifying features that correlate with defect labels and recognizing scratches by visual characteristics like texture contrast and edge dynamics.
However, deep learning's dependency on large training datasets creates a practical challenge in manufacturing environments designed to produce minimal defects.
Addressing Data Scarcity: Synthetic Data and Unsupervised Learning Training deep learning models requires large datasets with balanced representations of good and defective parts. Efficient production lines produce few defects, resulting in scarce defect examples. Two approaches solve this challenge:
Unsupervised Learning:
Trains models exclusively on acceptable parts AI learns statistical distribution of perfect componentsFlags deviations as anomalies during inspection Detects previously unseen failure modes that supervised models might miss Synthetic Data Generation:
Uses computer graphics and GANs to create photorealistic defect images Virtual models can have procedural defects applied under various lighting conditions Generates massive labeled datasets before physical production begins Platforms like NVIDIA Omniverse enable digital twin creation for robust training With AI models trained and ready to deploy, the final technological challenge is ensuring these sophisticated algorithms can operate at the speeds automotive production demands.
Edge Computing: Real-Time Intelligence and Actionable Insights Automotive production lines require inspection decisions in milliseconds. At standard conveyor speeds, vehicles pass inspection stations in just a few seconds, demanding instantaneous processing of high-resolution imaging. Sending data to cloud servers introduces unacceptable latency—by the time results return, the defective part is already meters down the line. The associated bandwidth costs only compound the problem.
This timing constraint demands a fundamentally different architecture. Edge AI is a computing architecture that processes artificial intelligence algorithms locally on smart cameras or line-side controllers rather than in the cloud, enabling real-time decision-making.

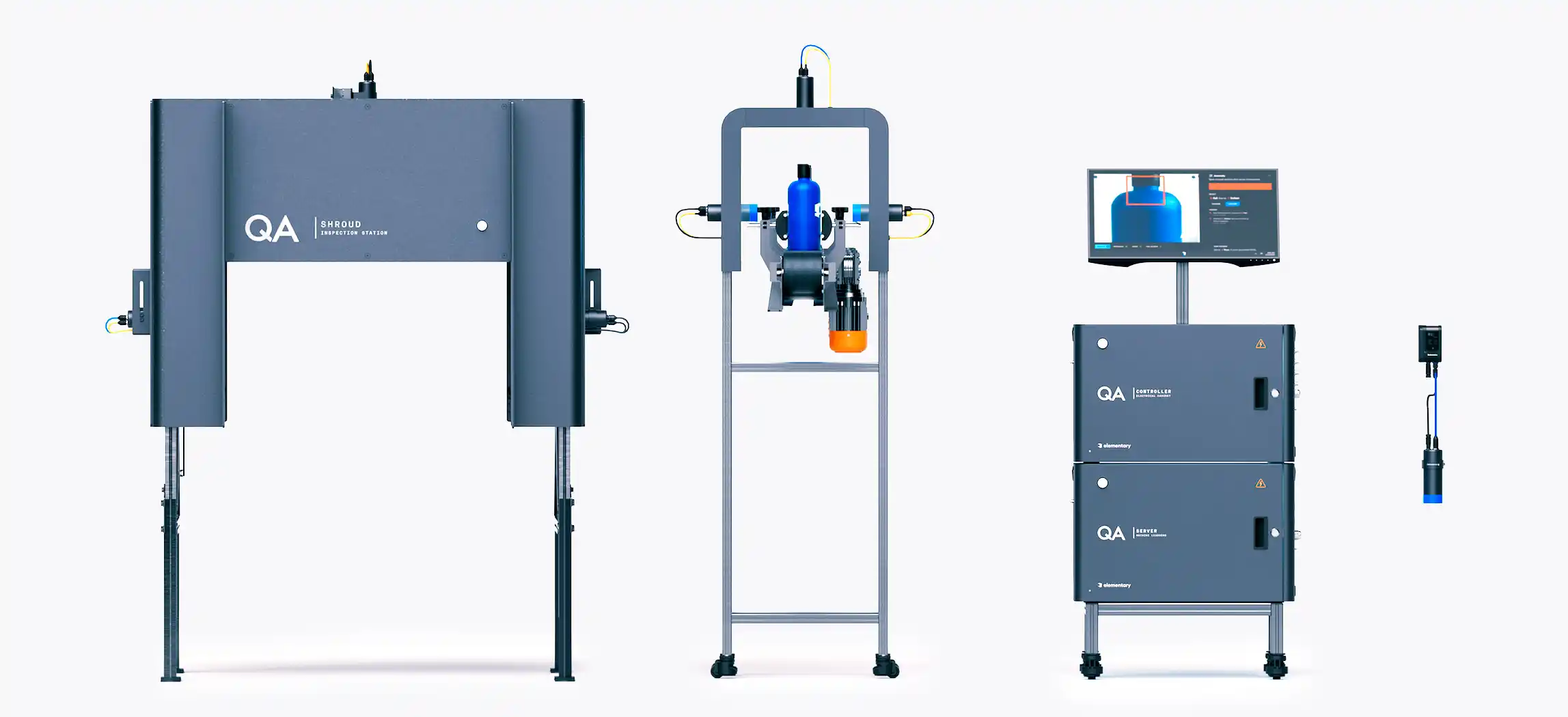

Elementary's Edge Hardware The approach leverages the best of both worlds. Deep learning models train in the cloud where computational resources are unlimited, then deploy to edge devices where speed is critical. The edge device performs inference—making pass-fail decisions—in real time, while only results and metadata transmit to central databases.
Automated vs Manual Vehicle Inspection: Key Differences The fundamental differences between automated and manual inspection span accuracy, consistency, speed, and data capabilities.
Dimension
Manual Inspection
Automated Systems
Accuracy & Precision
Cannot achieve micron-level precision required by modern vehicles; especially inadequate for EV battery modules and autonomous sensor mounting (tolerances in fractions of degrees); misses subtle defects on textured surfaces
Achieve single-digit microns to sub-millimeter accuracy; consistently detect defects human vision cannot perceive; far exceed human capabilities across all precision requirements
Consistency & Reliability
Natural variation by shift, time of day, and individual judgment; fatigue and attention lapses affect quality; statistical sampling (one in every ten parts) leaves massive quality gaps
Maintain identical standards throughout extended production runs; no fatigue or attention degradation; enable 100% inline inspection without slowing production lines
Speed & Throughput
Cannot keep pace with 60–90 second takt time production lines; comprehensive inspection impossible at production speeds; creates bottlenecks in high-volume manufacturing
Inspect at full production speed while generating instant reports; drive-through systems scan complete vehicles in seconds; capture all surfaces without slowing throughput
Data & Traceability
Limited documentation capabilities; no comprehensive digital audit trails; poor traceability contributed to Takata's 67 million vehicle recall
Complete digital audit trails (VIN, timestamp, process conditions); surgical recall precision—GM limited recall to 4 vehicles ; 20% warranty cost reduction, 35% defect reduction
Labor & Ergonomics
Awkward postures (underbodies, engine bays, roof lines) lead to musculoskeletal injuries; high physical demands reduce workforce availability; repetitive tasks cause fatigue
Robotic arms access difficult zones without injury risk; no fatigue or accuracy degradation; Note: humans retain advantages in ambiguous situations requiring contextual judgment
Understanding these enabling technologies—machine vision, AI, synthetic data, and edge computing—provides the foundation for examining how they deploy across the automotive production line. Each manufacturing stage presents unique inspection challenges requiring tailored solutions.
Core Automotive Inspection Applications Automated vehicle inspection is not monolithic but a suite of specialized inspection systems tailored to each stage of the vehicle inspection process.
Body-in-White: Structural Foundation Body-in-White (BiW) is the stage of automotive manufacturing where unpainted sheet metal structures are welded together to form the vehicle's structural frame. This phase establishes fundamental geometry and structural integrity. Errors cascade through every subsequent process, making comprehensive automated inspections essential.
BiW automated inspections encompass four critical capabilities:
Absolute dimensional measurement ensures critical mounting points and interfaces are positioned precisely where specifications demand, using laser radar systems that measure at CMM-level accuracy while keeping equipment clear of production paths.Weld seam inspection verifies structural integrity across thousands of spot welds per vehicle, using high-resolution imaging and deep learning for defect detection including porosity, cracks, and incomplete fusion in real time.Gap and flush measurement confirms panel alignment for aesthetics, aerodynamics, and weather sealing, using laser profiling that compensates for conveyor vibration to deliver reliable inline data and instant condition reports.Surface defect detection identifies dents and splits before painting, using structured light to detect surface depressions as shallow as a few microns when repair costs remain low.With the body structure verified, vehicles move to the paint shop where a different set of optical challenges emerges.
Paint Shop and Exterior Inspection: Microscopic Imperfections on Glossy Surfaces Paint shop and exterior inspection present unique optical challenges. Defects as small as 10 to 50 microns must be detected on highly reflective surfaces across multiple color variants.
To address these challenges, deflectometry projects known patterns onto vehicle surfaces via large display screens, capturing pattern reflections from multiple angles. Surface defects cause pattern distortions that reveal defect type and severity. Companies like ISRA VISION , J3D Vision , and Eines Systems have specialized in this technology, achieving defect detection down to the micro-level on moving production lines and enabling classification into categories like dust inclusions, scratches, paint runs, or orange peel texture.
Beyond detection, leading manufacturers have integrated these inspection systems with automated repair. Manufacturers like BMW have implemented automated repair systems where deflectometry data guides robotic sanders and polishers. The AI-powered system classifies each defect, determines appropriate repair strategy, and directs robots to exact coordinates. This creates closed-loop systems that improve paint shop efficiency while maintaining surface quality standards.
While paint inspection focuses on surfaces visible to customers, powertrain manufacturing requires even higher precision for components hidden inside the vehicle.
Powertrain and EV Components: Micron-Level Precision Powertrain manufacturing demands the highest dimensional precision, with tolerances often specified in single-digit microns. Engine blocks, cylinder heads, and crankshafts all require micron-level accuracy to ensure proper sealing, bearing clearances, and valve timing.
To achieve this precision, automated coordinate measuring machines equipped with laser scanners measure thousands of features per component with 5-micron accuracy, while machine vision also inspects machined surfaces for porosity and tool marks that could cause premature wear.
The shift to electric vehicles introduces entirely new inspection challenges. EV battery and electric motor manufacturing introduce inspection requirements exceeding traditional powertrains. Battery modules require verification of cell stacking alignment, foreign particle contamination detection, and laser weld inspection on busbars to ensure electrical continuity and structural strength.
Electric motors present equally demanding requirements—stator production involves complex copper wire geometries in hairpin winding processes where vision systems verify insulation integrity and precise hairpin alignment before welding. Because these components are sealed in housings, visual inspection during assembly represents the primary opportunity to catch defects before catastrophic failures in service.
After body, paint, and powertrain are complete, the final assembly stage brings all systems together—and requires comprehensive verification across thousands of components.
Final Assembly: Interior and Undercarriage Vehicle Inspections Final assembly integrates thousands of components with high variety across trim levels and option packages, requiring three distinct inspection approaches:
Interior Inspection:
AI-powered systems (Elementary , UVeye ) scan vehicle interiors systematically Deep learning identifies seat wrinkles, damaged dashboard materials, missing components Handles immense variation in materials and colors (e.g., verifying sport trim red stitching vs. standard black) End-of-Line Verification:
Drive-through systems scan complete vehicles in seconds as they exit assembly plants Cameras and sensors capture all exterior surfaces plus undercarriage AI detects dents, scratches, fluid leaks, tire damage Creates instant condition reports documenting vehicle condition at factory gate Invaluable for rental companies, dealerships, and fleet managers resolving damage disputes Geometric Verification:
Laser radar systems measure up to 170 locations per vehicle at conveyor speeds Catches alignment issues introduced during final assembly No vehicle stops required These diverse applications—from body structure to paint to powertrain to final assembly—rely on different sensor technologies, each optimized for specific measurement challenges.
Core Inspection System Technologies Success with automated vehicle inspection systems requires understanding the capabilities and limitations of core vision inspection equipment and sensor technologies. Different physical principles suit different inspection applications.
Two-Dimensional Vision: Speed and Simplicity Two-dimensional machine vision using CMOS or CCD sensors remains the workhorse for many automotive applications. These systems capture flat intensity images based on light reflection, providing high processing speeds at reasonable costs. They excel at optical character recognition for reading VIN numbers and part codes, presence-absence verification to confirm components like bolts are installed, and feature location to guide robots.
Two-dimensional vision cannot perceive depth, making it unable to distinguish between a dark stain and an actual hole, or measure sealant bead volume. Systems are sensitive to lighting variations—shadows can be misinterpreted as part edges. When applied to tasks where depth information is not required, two-dimensional systems provide unmatched speed and cost-effectiveness.
The dimensional accuracy demanded by modern automotive manufacturing, however, requires technologies that capture three-dimensional geometry.
Three-Dimensional Measurement: Adding Depth Two-dimensional vision limitations have driven adoption of three-dimensional technologies providing depth perception for dimensional measurement.
Laser Triangulation and Profiling Laser triangulation is a 3D measurement technique that projects a laser line onto surfaces while cameras observe from an angle to calculate depth. As the line deforms following surface contours, systems calculate depth using triangulation, providing single-digit micron accuracy that remains robust against ambient lighting. This technology is standard for gap and flush measurement, weld seam profiling, and tire tread inspection, though it measures only a single profile line at a time and requires part or scanner motion to build complete models.
Structured Light Metrology Structured light metrology is a 3D imaging technique that projects entire patterns (grids or fringes) onto objects and analyzes pattern distortions to reconstruct dense point clouds. Cameras capture how patterns distort, then analyze phase shift to reconstruct the three-dimensional surface geometry. Unlike laser profiling, structured light captures full fields in single snapshots, making it ideal for inspecting large areas like hoods or roof panels. It achieves exceptional resolution but can struggle with highly reflective or transparent materials.
Time-of-Flight Sensors Time-of-flight (ToF) is a distance measurement technology that calculates depth by measuring the time light pulses take to travel to objects and return. While offering lower resolution than structured light or laser profiling, these sensors are fast and efficient for large spatial volumes. They're used for logistics applications—helping robots recognize part orientation, verifying components are correctly seated, and providing real-time data for collision avoidance.
For the most demanding applications—such as verifying complete vehicle body geometry—even standard 3D measurement requires upgrading to metrology-grade accuracy.
Advanced Metrology: Absolute Accuracy at Production Speeds Industrial Laser Radar Industrial laser radar is a non-contact metrology system that provides absolute coordinate measurements with single-digit micron precision at production speeds. Systems like the Leica ATS 800 offer large standoff distances—sensors positioned meters from the vehicle body—keeping equipment clear of production paths. These systems scan features like mounting holes and edges to verify body structure geometry, providing NDT (non-destructive testing) data correlated to absolute CAD coordinates.
Photogrammetry Photogrammetry is a 3D reconstruction technique that captures high-resolution images from multiple angles and uses computational geometry to create three-dimensional models. Companies like DeGould and GOM use this technology for complete vehicle exterior scanning. Vehicles drive into a booth where cameras capture hundreds of images in seconds, reconstructing dense meshes that reveal surface condition, dents, scratches, and misalignment.
Deflectometry for Specular Surfaces Deflectometry is an optical inspection technique that projects structured light patterns onto specular (mirror-like) surfaces and analyzes reflection distortions to detect micron-level defects. This technology is essential for inspecting painted and polished automotive surfaces that act as mirrors. By analyzing how projected patterns reflect and distort, deflectometry detects surface deviations down to the micron level—critical for paint shop inspection and class-A surface verification where appearance directly impacts customer perception.
Comparative Analysis of Sensor Technologies
Technology
Key Strengths
Limitations
Primary Applications
2D CMOS/CCD High speed, low cost, mature technology
No depth perception; sensitive to lighting/contrast
OCR, part presence, label verification, color sorting
Laser Profiling High precision (microns), robust to ambient light
Measures only a single profile line; requires motion
Gap & flush, weld seam profile, tire tread depth
Structured Light Full-field 3D capture, extremely high resolution
Sensitive to highly reflective/transparent surfaces
BiW surface inspection, dent detection, reverse engineering
Time-of-Flight Real-time 3D, efficient for large objects
Lower resolution than structured light/laser
Bin picking, rack inspection, logistics sorting
Laser Radar Absolute accuracy at long standoff distances
Slower than snapshot systems; higher cost
BiW geometric verification, CMM replacement
Deflectometry Detects micron-level defects on glossy/painted parts
Requires specular surface; complex setup
Paint shop inspection, class-A surface analysis, glass inspection
Understanding these sensor technologies and their trade-offs enables informed decisions when designing inspection systems for specific automotive applications. The business case for deployment depends on quantifying the value these technologies deliver.
Benefits of Automated Vehicle Inspection: Reducing Costs and Improving Quality Automated vehicle inspections deliver value through three primary mechanisms:
Comprehensive traceability enables surgical recall precision by linking inspection data to specific vehicle identification numbers. The Takata airbag disaster resulted in recalls of 67 million vehicles because manufacturers couldn't identify which cars contained defective inflators, while GM's comprehensive tracking limited a brake valve recall to just 4 vehicles . Industry data shows proper traceability delivers 20% reduction in warranty costs and 35% reduction in defect occurrences.
Quality cost reduction through the "1-10-100 hundred rule"—defect correction costs increase by ten at each production stage. By deploying in-line inspection systems early in production to catch defects before value is added, manufacturers prevent wasting energy, machine time, and money on parts destined for scrap. Automated systems enable 100% inline inspection without slowing production lines, dramatically reducing inspection costs while improving quality and customer experience.
Labor economics optimization addresses severe skilled labor shortages by automating monotonous inspection tasks, allowing workers to focus on system management and process optimization. Robotic inspection systems also eliminate ergonomic hazards from checking hard-to-reach vehicle areas, reducing musculoskeletal injuries and insurance costs while helping businesses save time and operational costs.
Implementation Challenges Organizations face three primary hurdles when deploying automated inspection systems:
Integration complexity stems from retrofitting modern vision systems into legacy production lines that lack communication infrastructure. Cascading disruptions include mounting sensors, routing cables, integrating with PLCs and MES systems, and ensuring proper data flow, with non-recurring engineering fees typically ranging from $20,000–$150,000. Success requires coordinated team engagement across vision engineers, controls engineers, and IT specialists.
Capital investment spans from $5,000 for basic systems to over $1 million for comprehensive solutions. Beyond hardware, organizations must account for programming and calibration ($10K-$30K), training ($1K-$5K per person), annual licensing ($2K-$12K), and infrastructure upgrades. Total cost of ownership over five years typically runs double the initial hardware price.
Ongoing maintenance demands annual calibration, regular camera cleaning, lighting replacement, and periodic AI model retraining as products evolve. Organizations must balance model updates against production disruption, with many scheduling changes during planned maintenance windows. Annual maintenance budgets run $5,000–$15,000 per inspection station.
Understanding these challenges enables better project planning and realistic expectations. A phased implementation approach addresses these hurdles systematically while demonstrating value at each stage.
Strategic Implementation Successful automated inspection deployment requires thoughtful strategy that demonstrates clear value while building organizational capabilities. Based on industry experience, the following phased approach typically delivers the best results.
Phase One: High-Impact Foundation Begin with applications offering immediate measurable benefits and clear return on investment. Priority areas include:
Safety-critical weld verification where defects could compromise structural integrity Paint defect detection where manual inspection creates bottlenecks Dimensional measurement of body structures where accuracy exceeds human capability Component traceability for parts with high field failure rates These applications build organizational expertise with vision technology while establishing infrastructure and management support for expansion.
Phase Two: Expanding Inline Quality Control Build on initial success by extending automated inspection to additional production stages. Prioritize applications where inline measurement enables real-time process feedback that prevents defect propagation:
Expand weld inspection coverage to additional weld types and locations Implement surface inspection before painting to catch defects when correction costs remain low Deploy dimensional verification for powertrain components Integrate inspection data with manufacturing execution systems for automated routing decisions This connects isolated inspection stations into integrated quality control systems providing real-time intelligence for corrective action.
Phase Three: Advanced Analytics Implement capabilities that leverage vision systems for continuous improvement:
Deploy AI-powered anomaly detection for unknown defect types Integrate predictive analytics that identify process drifts before they generate defects Implement Industry 4.0 connectivity enabling cross-facility benchmarking Develop process optimization using quality data to drive parameter adjustments This leverages accumulated data to enable proactive process control rather than reactive defect detection.
Successful execution of this phased approach requires selecting appropriate technology vendors and integration partners who can support both initial deployment and long-term system evolution.
The Vendor Landscape: Evaluating Industry Leaders and Digital Solutions The automated vehicle inspection ecosystem includes established industry leaders, specialized metrology companies, and AI-focused startups. Selecting appropriate vendors requires evaluating technical capabilities, integration complexity, and total cost of ownership.
Established Platforms Vision and AI Systems :
Cognex : Comprehensive product portfolios with In-Sight systems combining AI, 2D/3D vision, and VisionPro software for applications from presence verification to weld seam analysis. Market leader in industrial machine vision with deep automotive expertise.Keyence : Direct sales model provides high-touch support for complex automotive deployments. Products range from compact smart cameras to 3D profilers for component and battery module inspection.Precision Metrology :
ZEISS : ZEISS INSPECT software unifies data from optical, x-ray, and tactile CMM systems achieving micron-level accuracy. Industry-leading precision for dimensional measurement applications.Hexagon : Autonomous Metrology Suite features cloud-based programming reducing setup from days to hours. Nexus platform enables digital twin synchronization between physical measurement and virtual CAD models.Surface Inspection Specialists :
ISRA VISION (Atlas Copco): Specializes in automotive paint shop inspection with robot-guided systems. Achieves over 95% detection rates in under 50 seconds per vehicle for surface defect inspection.AI-Powered Startups Elementary: QualityOS platform offers self-learning inspection requiring no labeled training data. Backed by Toyota Ventures and Rockwell Automation, with systems inspecting over 1 billion parts annually.Landing AI : Founded by Andrew Ng, serves automotive suppliers like Denso and Bosch with practical machine learning solutions.UnitX : Deploys patented software-defined lighting technology and generative AI for rapid defect detection.System Integrators KUKA : Global leader in automotive robotics and automation systems. Major customers include BMW, GM, and Ford for body shop and assembly automation.Dürr : Provides complete paint shop solutions from pretreatment through final inspection. Industry leader in automotive painting systems and environmental technology.Rockwell Automation : FactoryTalk Analytics VisionAI platform offers no-code AI inspection accessible to operations personnel. Strategic investments in AI-powered quality control for traditional manufacturing.Siemens Digital Industries : Comprehensive digital factory integration connecting inspection systems to enterprise manufacturing platforms. AI visual inspection integrated into broader Industry 4.0 solutions.Looking Forward Quality assurance automation is transitioning from competitive advantage to standard practice in automotive manufacturing. As this shift accelerates, three key trends are shaping how organizations adopt and deploy these systems.
Advancing AI capabilities continue to push the boundaries of what automated inspection can achieve. Vision transformers and continuous learning systems that improve over time are replacing static models, while synthetic data generation techniques reduce the massive training data requirements that once limited deployment speed. These advances make sophisticated inspection accessible to smaller manufacturers who previously lacked the resources to implement AI-powered systems.
At the same time, deepening connectivity and data integration are transforming isolated inspection stations into networked intelligence systems. Digital twins enable virtual-physical synchronization, allowing engineers to test inspection strategies in simulation before deploying to production lines. Industry 4.0 platforms facilitate cross-facility benchmarking and supply chain collaboration, creating unprecedented visibility into quality metrics across entire manufacturing networks.
Finally, new sustainability imperatives are driving demand for inspection capabilities that didn't exist five years ago. Manufacturers incorporating recycled materials with variable properties need systems that can adapt to inconsistent feedstock. Battery recycling operations require quality verification processes for remanufactured cells. And the proliferation of autonomous vehicles demands sensor calibration with metrology-grade precision to ensure safety-critical systems function correctly.
For organizations evaluating automated inspection, the question is not whether to deploy these systems, but how to prioritize implementation to address critical quality gaps. Success requires matching sensor capabilities to specific inspection requirements while ensuring integration with existing production systems. Organizations that treat automated inspection as required infrastructure rather than discretionary spending will achieve the quality levels, cost structures, and production efficiency that define competitive position in modern automotive manufacturing.
Frequently Asked Questions How much do automated vehicle inspection systems cost? Automated vehicle inspection systems cost between $5,000 and $1 million depending on complexity. Entry-level 2D systems start around $5,000-$10,000, mid-range 3D measurement systems run $20,000-$50,000, and high-end AI-powered systems reach $100,000-$500,000. Complete paint shop systems can exceed $1 million. Total cost of ownership over five years typically runs double the initial hardware price when including programming, training, licensing, and infrastructure. Most systems achieve payback within 12-18 months through labor savings, scrap reduction, and recall prevention.
What types of defects can automated vehicle inspections detect? Automated systems detect dimensional deviations, weld defects (porosity, incomplete fusion), surface defects on painted and unpainted parts, assembly errors, paint defects (as small as 10-50 microns), electrical component defects in batteries and motors, tire wear and damage, undercarriage issues, and previously unseen anomalies through unsupervised learning. Detection accuracy rates exceed 90% for known defect types, with some implementations achieving over 99.5% accuracy. This comprehensive damage detection capability exceeds what the naked eye can identify.
Are automated inspections more accurate than manual inspections? Yes, automated systems are significantly more accurate. Automated systems achieve measurement accuracy from single-digit microns to sub-millimeter depending on technology used, far exceeding human capabilities. Systems maintain identical standards throughout extended production runs without fatigue or attention lapses. Humans retain advantages in ambiguous situations requiring contextual judgment, which is why hybrid human-machine workflows prove most effective for complex applications.
What integration is required for automated vehicle inspection systems? Integration requires mechanical mounting (sensors, lighting, environmental protection), electrical integration (power, networking, synchronization), control integration (PLCs, robot controllers), and IT integration (MES systems, enterprise databases). Integration complexity—particularly with legacy equipment—often represents the largest challenge, with non-recurring engineering fees typically ranging $20,000-$150,000. Organizations should expect 6-12 months from project initiation to stable production operation.
What's the difference between 2D and 3D vehicle inspection systems? 2D vision systems capture flat images and excel at tasks like reading codes, verifying part presence, and detecting surface defects where depth information isn't required. They're fast and cost-effective but cannot measure depth or volume. 3D systems (laser profiling, structured light, time-of-flight) measure dimensional features, gaps, flushes, and surface contours with micron-level precision. 3D systems are essential for body-in-white dimensional verification, gap and flush measurement, and applications requiring absolute coordinate measurement.
How long does it take to deploy automated inspection systems? Deployment timelines vary by complexity. Simple 2D camera systems for presence verification may be operational within days. 3D measurement systems requiring robot integration typically require 2-4 weeks for mechanical installation and initial programming. Complete multi-station inspection systems with MES integration generally require 6-12 months from project initiation to stable production operation, including planning, integration, testing, and workforce training.
