Capturing accurate images of parts moving at several meters per second requires split-second timing. A blurred image or mistimed capture translates directly to false rejects, undetected defects, and line downtime. The difference between a machine vision system that delivers reliable data and one that creates problems comes down to triggering. The trigger signal determines exactly when capture occurs, making it the foundation of system reliability.
What You'll Learn This guide provides the technical foundation for implementing reliable triggering in industrial machine vision systems. You'll understand:
How triggering works and why it matters: The role of precise timing in image quality, the difference between hardware and software triggers, and how timing metrics like latency and jitter affect system performanceHardware trigger sources and when to use them: Proximity sensors, vision sensors, PLCs, and encoders—including decision frameworks for matching trigger sources to your application requirementsSignal standards and cable considerations: TTL vs. differential signaling, when optical isolation is necessary, and how to maintain signal integrity in electrically noisy environmentsCamera I/O configuration: Input line settings, output signals for synchronization and feedback, trigger delay calculations, and debouncing filtersMulti-camera synchronization: Master-Slave architectures, Real-Time Controllers, and interface protocols for tight timing controlIntegration with factory automation: Position locking for accurate rejection, encoder-based tracking, and PLC communication protocolsTroubleshooting timing problems: Diagnosing missed triggers, eliminating double triggers and jitter, and mitigating motion blur in high-speed applicationsWhether you're specifying a new system or troubleshooting an existing installation, this guide provides the decision frameworks and technical details for reliable triggering implementation.
Machine Vision Triggering Fundamentals The Essential Role of Precise Timing Triggering establishes precise synchronization between the camera's electronic shutter and real-world production line events, controlling when image capture occurs. Without controlled triggering, cameras capture images at random intervals, producing irrelevant data or unreliable results.
Effective triggering ensures image capture at the precise moment when objects are properly positioned, minimizing errors and maximizing throughput on fast production lines. The trigger signal controls critical camera settings including exposure time and enables coordinated pairing with synchronized lighting.
Defining Key Timing Metrics In high-speed automation, system performance is constrained by timing variability. Two primary metrics determine whether your triggering system will deliver consistent results or introduce unpredictable failures.
Latency is the fixed delay between the physical trigger event—a part interrupting a light beam, for example—and the moment the camera's electronic shutter begins image capture. Deterministic latency can be compensated for using a trigger delay parameter, but minimizing baseline latency is vital for maximizing system throughput.
Jitter represents the unpredictable timing error or variation between sequential trigger events and their resulting image capture times. Jitter is highly detrimental in multi camera setups requiring precise alignment of images from multiple cameras, such as 3D reconstruction or multi-channel acquisition. Achieving low jitter is a prerequisite for robust industrial communications and characterizes high-performance interfaces like CoaXPress (CXP).
Software Trigger vs. Hardware Trigger Machine vision systems operate in two modes: Internal (Software) Triggering and External (Hardware) Triggering. The decision between these modes hinges on your application's requirement for timing determinism.
Internal (Software) Triggering occurs when image acquisition is initiated by a command from the host PC operating system or the imaging application software. Software triggers can operate at regular intervals based on a set frame rate, while offering flexibility for laboratory settings, calibration, or non-time-critical applications. However, this trigger mode is inherently susceptible to unpredictable delays caused by operating system processes, kernel overhead, and software stack latency. Internal triggers are generally unsuitable for high-precision, real-time synchronization on fast production lines.
External (Hardware) Triggering is the industry standard for production environments. In this trigger mode, the machine vision camera receives a rapid electrical impulse from an external device—a trigger sensor, Programmable Logic Controller (PLC), or motion encoder. When externally triggered, the camera responds to external events on the production line. Hardware triggers bypass software overhead, providing significantly faster, more deterministic, and reliable response times essential for manufacturing quality control.
Impact of Triggering on Image Quality and Motion Blur Motion Blur occurs when an object moves a distance greater than the acceptable resolution tolerance during the camera's exposure time. High resolution sensors require tight control, as their fine pixel pitch makes motion blur more visible. For example, if an object moves at 10 m/s and the acceptable blur tolerance is 0.125 mm, the maximum permissible exposure time is limited to 12.5 μs.
Effective motion blur mitigation requires three coordinated elements:
Minimize exposure time: Use the shortest exposure duration that provides adequate signalEmploy high-intensity strobe lighting: Compensate for ultra-short exposures with pulsed illuminationSynchronize strobe with exposure: Use the trigger system's output to fire the strobe precisely during the camera's exposure windowWhen dealing with fast-moving targets, a global shutter camera must be used to prevent image distortion such as skew or smearing that results from the line-by-line acquisition method of rolling shutter cameras.
Hardware Trigger Sources and Integration for Machine Vision Systems Having established why precise triggering matters and how it affects image quality, the next question becomes: what devices can provide these trigger signals? The choice of trigger source depends on your application's timing requirements, environmental constraints, and integration complexity.
Four primary trigger sources dominate industrial applications, each suited to different timing and reliability requirements.

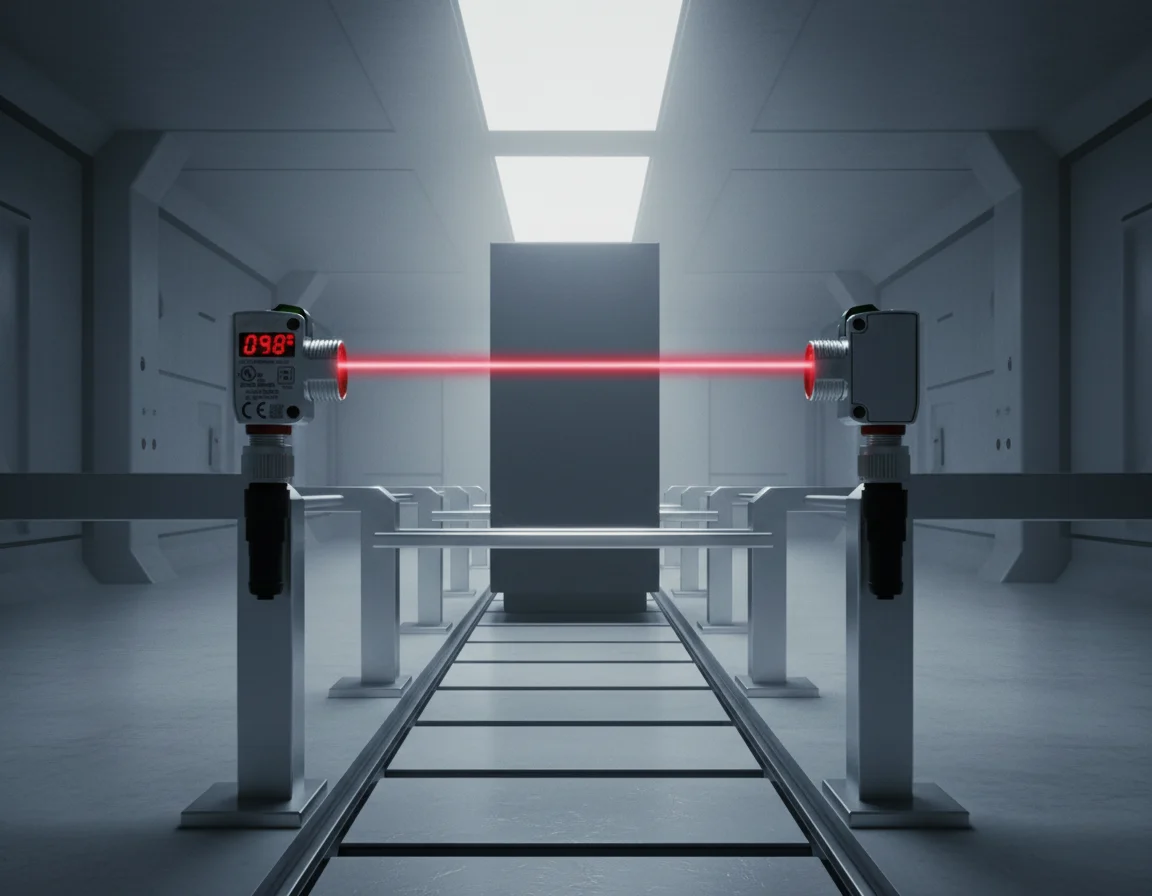

Simple Proximity and Presence Sensors Simple presence sensors—including photoelectric, inductive proximity, and laser distance sensors—serve as the initial event detectors in many automation cells, acting as the primary means to determine when an object enters the camera's Field of View (FOV). They output a digital pulse directly to the camera when an object is detected.
Capabilities:
Position verification Simple counting Presence detection Low-cost implementation Direct connection to camera trigger input Limitations:
Rigid mounting requirements Can struggle with part misalignment or variability Cannot distinguish patterns or colors Single detection point only Vision Sensors Vision Sensors combine camera optics with local processing power, enabling them to perform basic inspection tasks and generate trigger signals based on more complex criteria than simple presence detection. They can analyze multiple features simultaneously and handle variability, detecting objects despite minor speed or position fluctuations.
Capabilities:
Pattern recognition and feature detection Tolerance for position variability Color and shape discrimination Integrated decision-making (can trigger only when specific conditions are met) Limitations:
Higher cost than simple sensors Limited processing power compared to PC-based systems Requires more setup and configuration May struggle with complex inspection requirements Integration approach: In hybrid setups, a low-cost photoelectric sensor provides a "part approaching" signal that initiates the vision sensor's inspection sequence, which then triggers the main camera system when conditions are met.

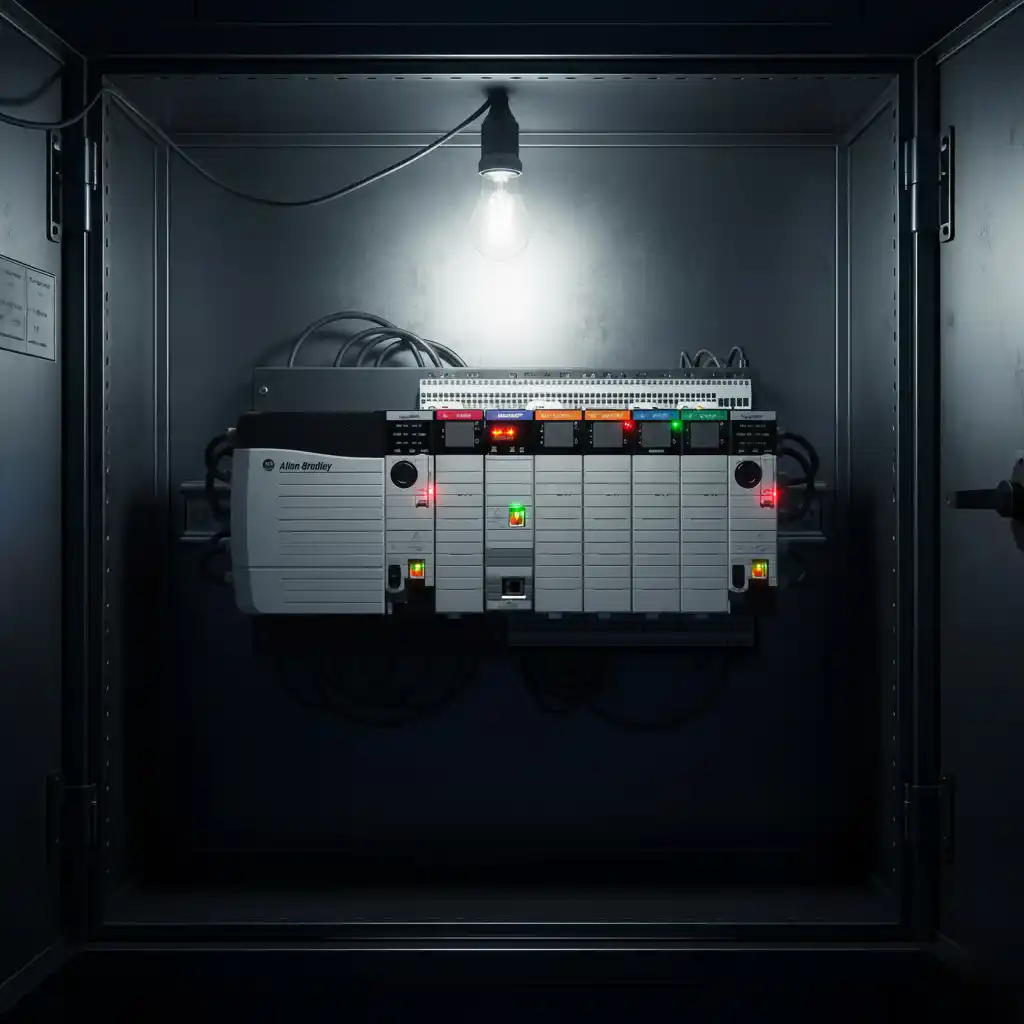

Programmable Logic Controllers (PLCs) as Master Triggers The PLC functions as the central coordinating mechanism in factory automation, frequently serving as the master trigger source for the vision system. In this configuration, the PLC monitors sensors positioned along the production line—such as proximity sensors or photoelectric eyes—that detect when a part reaches the inspection zone. When these sensors signal that a part is correctly positioned, the PLC sends a digital pulse through its output module directly to the camera's trigger input line.
Capabilities:
Centralized control of multiple inspection stations Integration with existing factory automation Coordinated workflow management (sensor input → camera trigger → reject actuation) Reliable timing from dedicated industrial hardware Position tracking and reject mechanism synchronization Limitations:
Adds complexity to system architecture Requires programming expertise Time-based triggering only (not ideal for variable-speed lines) Additional hardware and wiring costs Encoders for Motion-Based Acquisition Encoders translate mechanical motion into electrical signals, providing the precision required for motion-synchronized image acquisition. Unlike time-based triggering, encoders synchronize image acquisition to the object's physical movement—delivering a pulse for every specified increment of travel.
This distance-based approach ensures geometrically accurate images free from distortion, regardless of speed variations. For line scan cameras, this is mandatory: if a conveyor slows, the camera simply acquires lines less frequently, but each line still represents the same physical distance of object travel.
Capabilities:
Distance-based triggering (independent of line speed variations) Distortion-free line scan imaging Precise position tracking for accurate rejection Bidirectional motion detection Essential for variable-speed production lines Limitations:
Requires mechanical coupling to conveyor or motion system More complex installation than simple sensors Higher cost than basic trigger sources Requires encoder interface hardware or camera with built-in encoder input Encoder types:
Rotary encoders mount to a rotating shaft (such as a conveyor roller) and generate a precise number of electrical pulses per revolution. Industrial automation commonly employs incremental encoders, which output two quadrature signals (A and B, phase-shifted by 90 degrees) that enable direction detection and position tracking.
Linear encoders function similarly but measure linear displacement instead of rotational motion, making them ideal for gantry systems or conveyors with complex paths where a simple rotary measurement point isn't available.
Incremental vs. Absolute Encoders:
Encoder specifications include resolution (pulses per revolution or per millimeter) and signal type. The two main categories differ fundamentally in how they report position:
Incremental encoders generate pulses that represent relative motion from a starting point. They track position by counting pulses from a known reference location, but lose all position information when power is lost. Cost-effective and simple, but require a homing sequence after power failure. Use when short periods of downtime for re-initialization are acceptable.
Absolute encoders output a unique digital code for each position, maintaining position data even through power outages. Each position has a distinct value that the encoder can report immediately upon power-up, eliminating the need for homing. Necessary for critical, high-uptime applications where loss of position is intolerable.
Trigger Source Selection Guide Use this comparison to select the optimal trigger source for your application:
Trigger Source
Primary Use Case
Key Advantages
When to Choose
Simple Proximity/Photoelectric Sensor Basic presence detection, counting
Low-cost, simple to implement
For providing a basic "part approaching" signal or initial count, typically in combination with a more capable system for final image capture. Limited in capability but cost-effective.

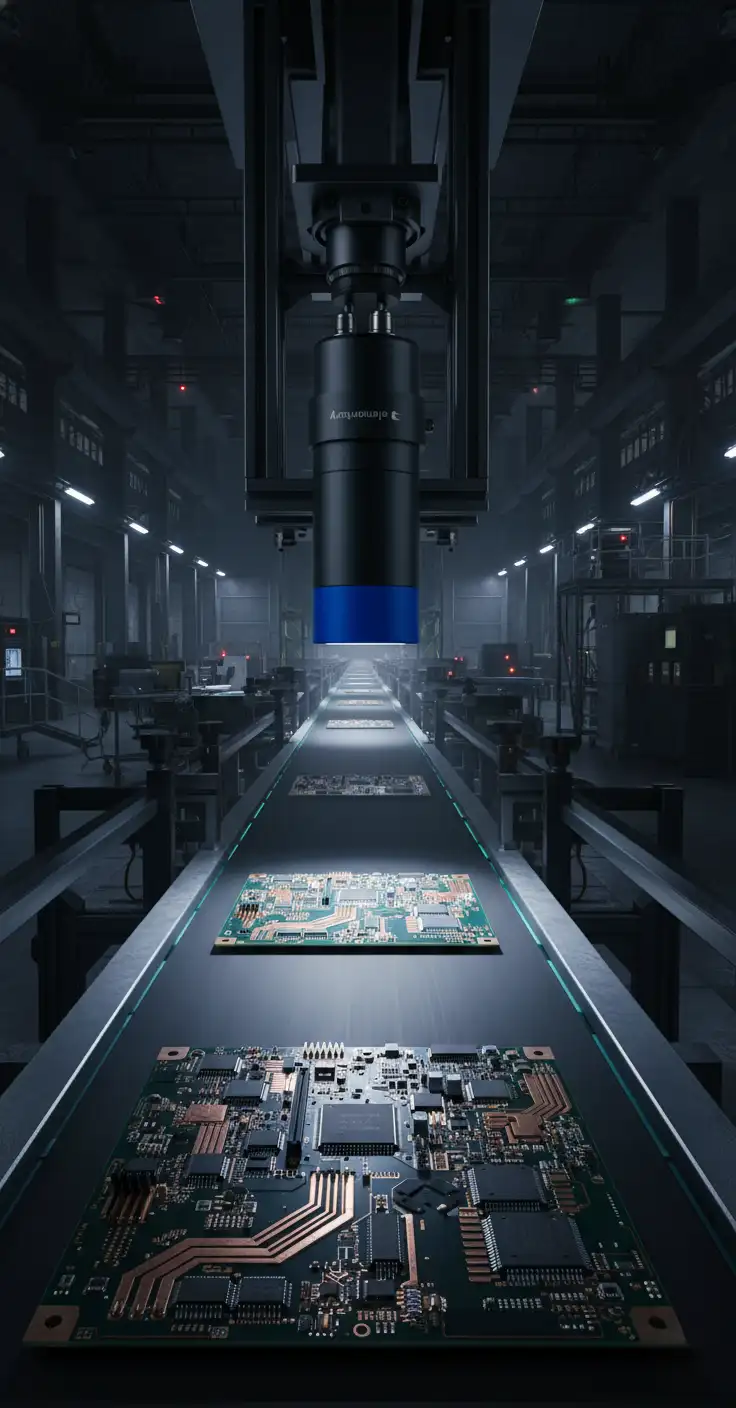

Vision Sensor Flexible inspection with object variability
Can analyze multiple features simultaneously; handles part misalignment and position/speed fluctuations
When the object presence signal needs to be conditional on feature analysis or when simple proximity sensors are insufficient due to part variability.
PLC (Programmable Logic Controller) Centralized system control and sequence management
Voltage signal output with programmable logic; orchestrates complex cycles (trigger, wait, receive result, actuate)
Mandatory for applications requiring integrated automation, sequential control, and guaranteed timing integrity between inspection and downstream actuators.
Encoder (Rotary/Linear) Continuous web inspection, conveyor tracking, line scan cameras
Distance-based acquisition (not time-based) ensures distortion-free images; provides precise position tracking for rejection mechanisms
Essential for all line scan applications and any conveyor system where rejection accuracy must be maintained regardless of speed fluctuations.
Trigger Cable Standards and Signal Considerations Selecting the right trigger source is only half the solution. The trigger signal must travel from source to camera with minimal degradation, which requires attention to cable standards and signal integrity.
Signal integrity directly impacts system reliability, especially over longer cable distances or in electrically noisy factory environments. Two primary signal standards dominate industrial triggering applications: single-ended TTL and differential signaling.
TTL (Transistor-Transistor Logic) TTL is a single-ended signal standard where voltage levels switch between a low state (typically 0 V and a high state (typically 5 V). TTL is simple to implement and widely supported but has limited noise immunity and is susceptible to ground loops. The maximum reliable cable distance for TTL is typically under 15 m.
Differential Signaling (RS-422 / RS-644) Differential signaling uses two complementary signal lines (positive and negative) to represent the trigger pulse. The receiving device detects the voltage difference between these lines rather than referencing a ground level. This approach provides excellent noise rejection because any electrical interference affects both lines equally, and the differential receiver ignores common-mode noise.
RS-422 and RS-644 are differential standards commonly used for encoder signals and high-speed trigger lines. They can reliably transmit signals over distances up to 60 m or more.
Note: Most industrial cameras include optical isolation on their inputs to protect against voltage spikes and ground loops when connecting to PLCs, motor drives, or other high-power devices.
Signal Standard Selection Guide Choose your signal standard based on these criteria:
Signal Standard
Physical Characteristics
Max Reliable Distance
Noise Immunity
When to Choose
TTL (Transistor-Transistor Logic) Single-ended, low voltage shift (0 V to 5 V)
Typically under 15 m
Low – susceptible to noise and ground loops
Use for short cable runs in low-noise environments where simplicity is prioritized. Expect potential issues in harsh industrial settings.
Differential (RS-422 / RS-644) Uses positive and negative lines; relies on voltage difference for noise rejection
Up to 200 ft (60 m) or more
Excellent – interference affects both lines equally
Mandatory for high-speed, high-precision applications, long cable distances, or electrically noisy industrial environments to guarantee low jitter and high signal reliability.
Trigger Cable Selection Best Practices Key considerations for trigger signal paths:
Use shielded twisted-pair cable, especially for differential signals Terminate shields at one end only (typically at receiver) to prevent ground loops Avoid running trigger cables parallel to high-power motor or welding cables Cross power lines at 90-degree angles when unavoidable to minimize induced noise Camera Settings and I/O Configuration for Triggered Image Acquisition Once the trigger signal arrives at the camera via properly selected cables, the camera's I/O configuration determines how that signal is interpreted and acted upon. Modern industrial cameras provide extensive I/O capabilities that extend beyond simple trigger input.
Configurable Input Lines and Trigger Settings Industrial cameras typically feature multiple digital input lines (often labeled Line0, Line1, etc.). Each line can be independently configured for specific functions. Line0 is commonly assigned as the primary frame trigger input, while additional lines can serve as exposure start/stop controls, reset signals for encoder counters, or inputs for external synchronization signals.
Configuration parameters for each input line include the trigger source selection (which physical pin) and edge detection settings—rising edge or falling edge voltage transition—along with advanced filtering or debouncing settings. Most cameras allow input lines to be logically combined, enabling complex triggering logic such as requiring simultaneous activation of multiple inputs before starting acquisition.
Configurable Output Lines and PLC Communication Output lines provide critical feedback and synchronization signals to external devices, particularly PLCs. These status signals enable the PLC to implement intelligent control logic, such as halting the conveyor if missed acquisitions occur frequently or sequencing multiple inspection stations with precise timing.
The four essential output signals are:
Exposure Active/Complete: Pulse spanning the exact duration of the camera's exposure. Confirms that the acquisition cycle was successful and indicates when the image is ready for processingStrobe Output: Precisely timed pulse designed to fire external lighting during the exposure windowTrigger Ready: Indicates the camera is prepared to accept the next frame trigger, alerting the PLC to prevent buffer overflowMissed Acquisition: Diagnostic flag that signals the PLC if a trigger pulse was received but the camera failed to capture the image due to insufficient recovery time or buffer constraintsThese signals form the feedback loop that allows the PLC to manage line speed, coordinate multiple inspection stations, and implement fault-handling logic when throughput limits are approached. Output signals are typically configurable with programmable delays and pulse widths, providing timing margins for downstream processing equipment.
Prescaler and Divider Functions for Line Scan Applications In high-speed encoder-based applications, the encoder may generate pulses at a rate far exceeding the camera's maximum frame rate. A prescaler function allows the camera to trigger on every Nth encoder pulse rather than every pulse. For example, setting a prescaler to a pre defined number like 10 causes the camera to capture one frame for every 10 encoder pulses received. This divider function is essential for matching camera throughput to line speed without requiring external frequency divider circuits.
Trigger Delay and Object Positioning Trigger delay is a configurable time offset between receiving the trigger pulse and actually starting the exposure. This parameter compensates for fixed system latencies and ensures the object is precisely positioned within the camera's field of view when the shutter opens.
Calculating the correct delay requires knowing the object's velocity and the physical distance between the trigger sensor and the optimal imaging position. If a part travels at$2 m/s and the sensor is positioned 50 mm upstream of the desired imaging point, the required trigger delay is 25 ms. Many vision systems provide auto-calibration routines that empirically determine the optimal delay by analyzing a series of test images.
Burst Mode for High-Speed Event Capture Burst mode (also called frame series mode) addresses a common constraint in high-speed applications: the camera sensor's acquisition speed often exceeds the maximum sustained bandwidth of the communication interface. In burst mode, a single trigger event initiates the capture of a predefined number of images in rapid succession.
The camera buffers these high-frequency images internally and then transmits them to the host computer at the slower interface speed. This decouples the rapid inspection frequency from the transmission frequency, enabling capture of fleeting, high-speed events without requiring expensive, high-bandwidth interface hardware. Burst mode is particularly valuable when monitoring transient phenomena or when parts pass through the field of view faster than real-time transmission allows.
Debouncing Filters Debouncing is a time-based filter applied to the trigger input signal to suppress spurious pulses caused by mechanical switch bounce, electrical noise, or signal reflections. When a mechanical sensor (such as a limit switch) actuates, the electrical contacts may physically bounce several times before settling, generating multiple trigger pulses from a single event.
Camera-side debouncing filters are configured with a time value (up to 5000 μs in many cameras) that defines a "dead time" following the initial trigger edge during which subsequent pulses are ignored. Setting the debounce time too short fails to filter all bounce events, while setting it excessively long may introduce unacceptable latency or cause legitimate subsequent triggers to be missed. A typical starting point is 1000 μs, adjusted based on observed system behavior.
Multi-Camera Synchronization Architectures Synchronizing multiple cameras for 3D reconstruction, stereo vision, or simultaneous multi-angle inspection demands precise coordination. When multiple cameras capture images simultaneously, misalignment of even a few microseconds can degrade measurement accuracy or create registration errors between images.
Leader-Follower Configurations The Leader-Follower configuration is the simplest multi-camera architecture. One camera is designated as the leader camera and receives the primary external hardware trigger. This leader camera then outputs a synchronization pulse from its dedicated output line, which feeds the trigger input lines of all follower cameras.
Leader-Follower systems can be wired in two topologies:
Daisy-Chain: Leader triggers the first follower, which triggers the second follower, and so on in sequence. Simple wiring but introduces cumulative latency as each camera adds delay to the chain.Star Configuration: Leader’s output is split and distributed to all follower cameras simultaneously using a signal splitter. All cameras receive the trigger at nearly the same time, minimizing latency differences, but requires additional hardware (splitter and more cables).Both approaches ensure coordinated exposure cycles across all cameras, with star configuration preferred when microsecond-level synchronization is critical.
Real-Time Controllers and Advanced Synchronization For systems requiring more complex timing control or involving numerous cameras, a dedicated Real-Time Controller (RTC) or Frame Grabber with multi-channel output becomes necessary. The RTC functions as a centralized trigger hub, receiving the initial event signal and then generating precisely timed output pulses to each camera. This architecture allows for fine control over inter-camera timing offsets and can coordinate cameras with different exposure requirements.
Camera Interface Protocols for Synchronization When high-precision timing is mandatory, the choice of camera interface becomes critical:
Deterministic interfaces (best for tight synchronization):
Camera Link: Deterministic, low-jitter communication inherently suited for tight synchronizationCoaXPress (CXP): Deterministic, low-jitter communication inherently suited for tight synchronizationNetwork-based interfaces:
GigE Vision: More flexible cabling, but introduces variable network latency that complicates precise synchronization, particularly in shared network environments where traffic can cause unpredictable delaysGigE Vision with PTP (IEEE 1588): Enables microsecond-level synchronization accuracy across a network by using timestamped messages to align camera clocks. This scheduled trigger approach allows multiple cameras distributed across a network to capture images simultaneously without requiring dedicated hardware trigger lines. Particularly valuable when physical trigger wiring is impractical or when synchronizing cameras across long distances within a facility.Position Tracking and Rejection Control Camera I/O configuration enables the camera to receive triggers and report status. However, machine vision systems don't operate in isolation—they must integrate seamlessly with factory automation systems for complete production control.
Position Locking for Accurate Rejection Coordinating inspection with spatially separate rejection mechanisms is complex. Fixed time delays fail when conveyor speed fluctuates or parts are manually removed.
The Position Locking Solution:
Position locking solves this by tracking parts using encoder distance measurements. The PLC or vision system monitors each part's precise location. Reject signals activate only when encoder counts confirm the faulty part has reached the actuator, ensuring accuracy regardless of line speed variance.
FIFO Buffer Implementation:
Implementing position locking requires maintaining a queue (FIFO buffer) of inspection results indexed by their encoder position at the time of capture. As the encoder advances, the system compares the current position against queued results and issues reject commands when positional matches occur. This approach handles variable speed, accumulating parts, and even brief conveyor reversals.
The FIFO (First-In-First-Out) buffer stores inspection results as a data structure where each entry contains:
Part inspection result (pass/fail) Encoder position at time of capture Optional part identifier or timestamp How the Queue Operates:
As new parts are inspected, results are pushed onto the queue. As the conveyor advances and the encoder count increments, the system continuously checks if any buffered results have reached the rejection actuator position. When a match occurs, the corresponding reject command is issued and that entry is removed from the buffer.
This architecture ensures correct rejection even when line speed varies significantly or when multiple failed parts accumulate in the queue before reaching the rejection point.
Implementation and Troubleshooting for High Speed Applications Even with proper trigger sources, signal integrity, camera configuration, and factory integration, triggering problems can still occur. Effective troubleshooting requires understanding common failure modes and their solutions.
Advanced Troubleshooting for System Reliability Diagnosing and mitigating timing errors is essential for maintaining system reliability and uptime.
Diagnosing and Preventing Missed Triggers:
Missed Triggers occur when:
Camera is processing a previous frame Internal buffer is saturated Incoming pulse width is too narrow Monitor the camera's "Missed Acquisition" status output continuously. For line scan applications, configure fewer lines per frame than the physical line count between triggers. Always rate system throughput conservatively relative to line speed.
Countering Double Triggers and Jitter: Double Triggers are almost exclusively the result of electrical noise or mechanical bouncing (chattering) at the trigger source. Unpredictable timing (jitter) is caused by noise or unreliable signaling.
Solutions:
Implement camera-side debouncing filters: Configure with sufficient time value to filter spurious pulses from the initial eventUse optical isolation: Physically separate camera inputs from noisy external devices to suppress voltage spikes and ground loopsReplace mechanical sensors: Switch to solid-state alternatives to eliminate contact bounceJitter Mitigation Techniques:
Quantify timing uncertainty using a high-speed digital oscilloscope to measure trigger-to-exposure variability Use differential signaling (RS-422 or RS-644) for all long-distance trigger lines Optimize host computer buffer management to reduce unpredictable OS overhead Mitigating Motion Blur and Rejection Errors: For blurred images in high-speed applications, ensure a global shutter camera is used for moving targets to prevent distortion. Utilize the camera's Strobe or Exposure Active output signal to precisely synchronize the high-intensity pulsed light source within the ultra-short exposure window, effectively "freezing" motion.
System Tuning Checklist for Optimized Performance When configuring your vision system, follow this sequence to ensure optimal performance:
Select the Trigger Source: Specify the dedicated digital input pin (Line0 being a common reference) that will receive the external hardware pulseDefine Edge Polarity: Configure the camera to initiate acquisition on either the rising or falling voltage edge of the incoming pulseSet Trigger Delay: Calculate and apply the necessary delay to compensate for fixed system latency, ensuring the object is precisely positioned in the camera's optimal focal planeImplement Debouncing: Configure the debounce time parameter to reliably filter spurious signals, ensuring signal stability without introducing excessive latencyVerify Strobe Synchronization: Utilize the camera's output I/O (Strobe Active) to verify externally that the pulsed lighting fires entirely within the exposure window, guaranteeing motion blur is mitigatedKey Takeaways: Essential Triggering Principles After exploring the technical depth of machine vision triggering, several principles emerge as fundamental:
Timing determinism is non-negotiable for production environments. Software triggers introduce unpredictable latency. External hardware triggers provide the consistent response times that manufacturing quality control requires.
Signal integrity determines system reliability. TTL works for short, clean runs. Differential signaling and optical isolation become mandatory in electrically noisy environments or over long cable distances.
Distance-based acquisition beats time-based for anything that moves. Encoders ensure line scan images remain distortion-free regardless of speed variations. Position locking guarantees accurate rejection even when line speed fluctuates.
Multi-camera synchronization requires purpose-built architecture. Leader-Follower configurations and deterministic interfaces like CoaXPress or Camera Link provide the low-jitter timing that stereo vision and 3D reconstruction demand.
The difference between adequate and reliable often comes down to details most people skip. Debouncing filters eliminate double triggers. Trigger delay compensates for fixed latency. Monitoring the Missed Acquisition flag reveals throughput bottlenecks before they impact production.
The technical depth in this guide reflects real-world complexity, but the core principle is straightforward: design your trigger architecture around your application's actual requirements. Evaluate line speed, timing precision, and environmental conditions—rather than choosing whatever seems simplest to wire up. These decisions determine whether your vision system works reliably or becomes a recurring maintenance problem.
Frequently Asked Questions About Machine Vision Triggering What is triggering in machine vision systems? Triggering ensures cameras capture images at precise moments aligned with physical events, improving accuracy and efficiency. Without triggering, cameras capture images at random intervals, leading to inaccurate data and missed inspections.
What is the difference between hardware and software triggering? Hardware triggers use electrical impulses from external devices (sensors, PLCs, encoders) for synchronization, providing superior precision and reliability for time-critical applications.
Software triggers originate from camera control software, offering flexibility for laboratory settings and non-time-critical applications, but with less precise timing due to software overhead.
What are burst triggers and when should they be used? Burst triggers capture a predefined number of images in rapid succession from a single trigger event. They're ideal for high-speed applications where the camera sensor's acquisition speed exceeds interface bandwidth, allowing capture of fleeting events without expensive high-bandwidth hardware.
How do you synchronize multiple cameras in machine vision? Multiple cameras can be synchronized using:
Leader-Follower configurations where one camera triggers others in sequenceReal-Time Controllers (RTC) that distribute trigger signals to all camerasPrecision Time Protocol (PTP IEEE 1588) for network-based synchronization with microsecond accuracyWhy is real-time triggering important for industrial applications? Real-time triggering ensures images are captured when products are correctly positioned, improving quality control accuracy and inspection reliability. It minimizes dropped frames, prevents motion blur in high-speed applications, and optimizes workflow by aligning image capture with event detection on fast production lines.
How does triggering improve inspection accuracy? Triggering ensures images are captured at the exact moment needed, allowing software algorithms to analyze properly positioned parts for pass/fail decisions. This reduces missed inspections, minimizes incorrect data processing, and enhances diagnostic accuracy in automated quality control systems.
How do I fix missed triggers in my machine vision system? Missed triggers occur when the camera cannot respond to incoming trigger signals. To fix this: monitor the camera's "Missed Acquisition" status output to identify the problem; ensure the trigger pulse width meets the camera's minimum input specification; reduce system throughput by decreasing trigger frequency; increase camera buffer capacity or optimize image transfer speed; and for line scan applications, configure fewer lines per frame than the physical spacing between parts.
How do I reduce motion blur in high-speed machine vision applications? To eliminate motion blur in fast-moving applications: use the shortest possible exposure time that still provides adequate signal; implement high-intensity strobe lighting synchronized with the camera's exposure window; configure the camera's Strobe Active output to trigger the light source precisely during exposure; always use a global shutter camera rather than rolling shutter for moving targets; and calculate maximum exposure time using the formula: exposure time = blur tolerance / object velocity.
Why am I getting double triggers in my vision system? Double triggers are caused by electrical noise or mechanical contact bounce at the trigger source. To eliminate them: enable the camera's debouncing filter with sufficient time value to filter spurious pulses; implement optical isolation on camera inputs to suppress voltage spikes and ground loops; replace mechanical sensors with solid-state alternatives to eliminate contact bounce; use shielded cables for trigger signals in electrically noisy environments; and verify trigger pulse polarity and voltage levels match camera specifications.
What causes jitter in machine vision triggering? Jitter—unpredictable timing variation between trigger events—is caused by electrical noise, unreliable signaling, or software overhead. Common sources include: inadequate signal integrity on long cable runs; ground loops and electromagnetic interference; non-deterministic operating system processes; insufficient host computer buffer management; and low-quality trigger sources with inconsistent output timing. Use a digital oscilloscope to measure trigger-to-exposure timing and quantify jitter magnitude.
When should I use a PLC versus an encoder for triggering? Use a PLC trigger when: you need centralized control of multiple inspection stations; integration with existing factory automation is required; simple presence-based triggering is sufficient; or you're implementing reject mechanisms that require position tracking feedback loops.
Use an encoder trigger when: line speed varies significantly during production; you need distortion-free line scan imaging; distance-based acquisition is required rather than time-based; or precise position locking is necessary for accurate part rejection on variable-speed conveyors.
How do I choose between TTL and differential signaling for triggers? Use TTL signaling when: cable runs are under 3 meters; the environment has minimal electrical noise; cost is a primary constraint; and you're connecting directly to nearby sensors or PLCs with clean signal paths.
Use differential signaling (RS-422/RS-485) when: cable runs exceed 10 meters; the environment has significant electrical interference from motors, drives, or welding equipment; multiple cameras need synchronized triggering over distance; or maximum jitter reduction is critical for multi-camera 3D reconstruction or stereo vision applications.
