If you've experienced vision system failures despite investing in high-end cameras and sophisticated algorithms, the problem likely isn't your processing power—it's your machine vision lighting.
Inadequate illumination remains the most common cause of poor machine vision performance, a deficiency that even the most advanced software cannot fully correct.
You've probably been there: the vendor demo looks perfect, the system goes live, and suddenly you're dealing with false rejects, mysterious failures on certain part orientations, or performance that degrades over a shift. The camera gets blamed, the software gets tweaked endlessly, but the real culprit—the lighting—never gets the systematic attention it deserves.
This guide presents a systematic approach to vision lighting that eliminates guesswork and delivers consistent, robust inspection results across diverse machine vision applications.
What You'll Learn This comprehensive guide provides a systematic approach to machine vision lighting across these key areas:
Three-Stage Framework : How to analyze your environment, understand material interactions, and systematically select lighting solutionsFour Cornerstones of Contrast Engineering : Master geometry, structure, wavelength, and filtering as independent variables for optimal contrastLighting Geometries : When to use Bright Field, Dark Field, diffuse dome, coaxial, and backlighting techniquesLight Source Selection : Compare LED, halogen, and specialized sources with guidance on spectral control (including blue light, green light, UV, and IR)Advanced Techniques : Implement strobing, overdrive, bandpass filtering, and polarization for challenging applicationsIndustrial Robustness : Ensure thermal management, uniformity, and environmental resilience for sustained performanceWhy Machine Vision Lighting Comes First Effective illumination acts as "pre-processing in parallel." Every contrast adjustment you achieve through light manipulation affects all pixels simultaneously during image capture. This physical conditioning of image data is dramatically more efficient than attempting to correct poor contrast through computationally intensive post-processing algorithms.
Your objective is straightforward: maximize contrast on features of interest, minimize contrast everywhere else, and ensure robustness against normal variations in part geometry or presentation. Get this right at the lighting stage, and your algorithms have clean data to work with. Get it wrong, and no amount of software tuning will compensate.
Understanding Light-Material Interaction To engineer contrast effectively, you need to understand how light behaves when it strikes your part's surface. This knowledge is important for selecting the right vision lighting products and implementing effective lighting techniques.

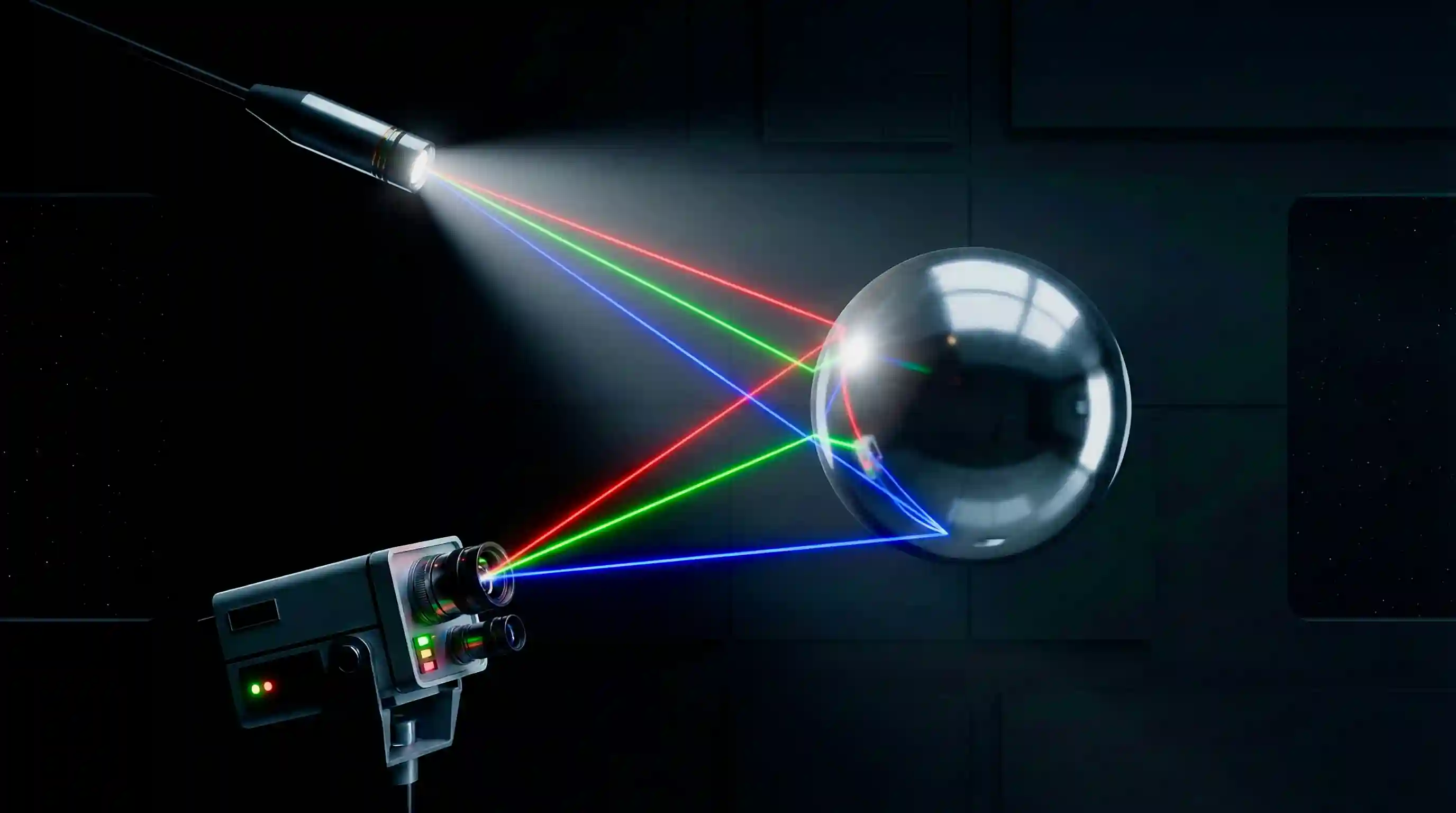

Specular Reflection (Mirror-Like Surfaces) Smooth surfaces like polished metal, glass, or glossy plastic act like mirrors—light bounces off at predictable angles. The problem? This creates concentrated glare that can blind your camera when the reflection points directly at the lens, washing out the very details you're trying to inspect. Understanding this behavior is critical for selecting the right lighting geometry.
Diffuse Reflection (Matte Surfaces) Most industrial parts have microscopic surface texture, even when they feel smooth. This texture scatters incoming light in many directions, making the part visible from multiple angles without harsh glare. This is why your first step is always classifying the surface—matte, mirror, or mixed reflectivity—because it determines which lighting technique will actually work and which reflected light your camera captures.
The Four Cornerstones of Contrast Engineering Effective vision illumination requires controlling four fundamental, independent variables. Understanding these differences helps you balance technical requirements with practical constraints:
Geometry defines the spatial relationship among the object, light source, and camera sensor . This dictates the angle and position of light, fundamentally separating different lighting techniques like Bright Field from Dark Field illumination. Your geometry choice depends directly on surface reflectivity and topography.Structure refers to the physical shape of light projected onto the object. Common patterns include bar lights, spot lights, ring lights, or specialized structured light grids—each designed to assist with specific inspection challenges.Wavelength exploits differential reflection and absorption. Materials reflect light similar to their color and absorb light of opposing colors. This principle works even with monochrome cameras when filtering or selecting specific wavelengths to increase contrast between features and backgrounds. Blue light and green light, for example, offer distinct advantages depending on your application.Filters are optical accessories used to differentially block and pass specific wavelengths, colors, or light directions. They include bandpass filters for spectral control and polarizing filters for managing directional glare.A Three-Stage Framework for Machine Vision Lighting Selection Moving beyond trial-and-error requires a systematic approach. This framework prevents the common pitfall of selecting lighting based on what worked on a different product line or what the integrator had in stock. Additionally, it ensures that customers arrive at solutions that meet their specific requirements.
Stage 1: Assess Your Physical Environment Analyze physical, operational, and environmental constraints—it saves time and budget.
Working Volume and Access Define your working volume, specifying three-dimensional access for camera, lens, and lighting components. This establishes minimum and maximum working distances, which dictate component selection and optical magnification.
Part Handling Dynamics Understand your part handling dynamics. Is the sample stationary, indexed, or continuously moving? What are the speeds, feeds, and expected cycle time?
High-speed operation requires very short exposure times to freeze motion, necessitating very high light intensity, often achieved only through strobing. These constraints on light intensity and pulse rate drive your entire power and electronic architecture—no matter how advanced the camera.
Ambient Light Contamination Analyze the risk of ambient light contamination from overhead facility lighting, adjacent inspection stations, or windows. Ambient light isn't static. It fluctuates with grid conditions, dims as bulbs age, and gets blocked when operators stand in the wrong spot.
Your strategy cannot merely measure ambient light—you must actively suppress it. Accomplish this either by overpowering ambient light using high-intensity strobing or by filtering out non-target wavelengths aggressively using matched bandpass filters or polarization.
Vibrational Factors Note vibrational factors (shock or continuous), as they might necessitate shorter exposure times or specialized mounting hardware. These considerations matter significantly in logistics and high-speed manufacturing environments.
Stage 2: Analyze Sample-Light Interactions Once physical constraints are known, classify the object's intrinsic physical properties to predict how light will behave upon incidence.
Surface Classification Classify the surface as diffuse (matte), specular (mirror), or mixed reflectivity. Cover texture (polished, rough, irregular) and topography (flat, curved, multi-elevation).
This classification is pivotal because it dictates the choice between bright field (capturing scattered light) and dark field (capturing light scattered by microscopic surface defects).
Material Properties Identify material composition (metallic, polymer, non-metallic) and transmission properties (transparent, opaque, semi-transparent). Certain polymers or inks may absorb or transmit infrared light differently than visible light, enabling inspection of features invisible to the naked eye.
Compare part color against background color to utilize the wavelength cornerstone effectively—opposing colors maximize contrast due to differential absorption.
Stage 3: Define Features and Apply the Cornerstones The lighting selection sequence culminates by defining exact features to be inspected: presence of print, edge integrity, scratch detection, or dimensional verification.
Systematic Iteration With environmental constraints and material physics established, systematically iterate through the Four Cornerstones—Geometry, Pattern, Wavelength, Filters—to generate candidate solutions that achieve required contrast. Start with geometry selection, as it has the most dramatic impact on feature visibility.
Light Source Selection and Spectral Control The light source determines available spectral bandwidth, life expectancy, and capability for high-speed operation. Understanding the range of options available helps customers find solutions that meet their specific needs.
Comparing Industrial Light Sources
Light Source
Spectral Output
Typical Life Span (Hours)
Relative Intensity / Control
Key Industrial Application Note
LED
Narrowband (Specific Colors, UV, IR)
High (50,000+ hours)
Medium to High (Excellent for Strobing / Overdrive)
Standard choice for precise spectral control and adaptability; requires thermal management.
Quartz Halogen
Broadband (High IR, Warm)
Low (500–2,000 hours)
Very High (Continuous)
Used for maximum continuous intensity; limited by high heat and filament wear.
Fluorescent
Line Spectrum
Medium (10,000–20,000 hours)
Low to Medium (Diffuse)
Cost-effective for small to medium inspection areas; inefficient for high-speed strobing.
Xenon
Broadband Flash
Medium
Extremely High (Pulsed)
Specialized for large-area setups requiring intense, momentary strobe light.
Metal Halide (Mercury)
Discrete wavelength peaks
High
High
Specialized, primarily used in microscopy for fluorescence studies.
Spectral Selection: Color, UV, and IR for Machine Vision Applications The wavelength cornerstone allows you to select light outside or within the visible spectrum to maximize feature contrast across diverse machine vision applications.
Visible spectrum and color filtering: Materials reflect or absorb wavelengths differentially. By selecting an illumination color opposite to the feature color, you achieve maximum absorption, making the feature appear dark against a bright background.
Blue light excels at revealing fine surface details due to its shorter wavelength and reduced scattering, while green light offers excellent balance between resolution and sensor sensitivity for many industrial cameras. This technique is highly effective even with monochrome cameras, often in conjunction with color or bandpass filters.
Beyond visible light: UV spectrum is increasingly utilized for high-power illuminators in applications involving detection of fluorescent materials or dyes. Conversely, infrared light can penetrate certain materials like polymers, allowing inspection of internal components or features printed with IR-absorbing/reflecting inks.
When selecting lighting, rely on EMVA 1288 standardized camera data sheets that specify sensor sensitivity at different wavelengths. This standardization lets you match your lighting wavelength precisely to your camera's peak sensitivity, maximizing system efficiency and eliminating guesswork.
Advanced Control: Strobing and Overdrive Industrial automation often requires high speed, which demands sophisticated power control techniques. Smart vision lights incorporate these capabilities to assist with the most demanding applications.
Strobing (pulsing the light) is essential in high-speed applications to freeze motion artifacts while managing thermal dissipation and power consumption. Advanced pulse control solutions synchronize light output precisely with the camera's exposure or gating functions.
Overdrive involves applying current significantly higher than the LED's steady-state rating for extremely brief periods. This produces dramatically higher light output than continuous operation would allow. This momentary boost is critical for high-speed inspections where exposure times are short, as it enhances contrast and lowers signal-to-noise ratio effectively.
Controller architecture: High-power strobing and overdrive require sophisticated control electronics. For maximum performance, discrete controllers located away from the light head represent best practice. These remote controllers provide space for high-capacity power components and dedicated cooling systems, keeping the LED array itself cooler and more stable. While discrete systems add complexity and cost, they prevent thermal bottlenecks and deliver the performance ceiling critical for reliable high-speed operation.
Adaptive lighting represents a significant trend in high-flexibility manufacturing. This technology allows a single lighting fixture to electronically alter its illumination characteristics—wavelength, pattern, or intensity profile—to suit different inspection requirements or various product SKUs passing through the same station. This dynamic capability greatly enhances operational flexibility compared to fixed, single-purpose fixtures, and new products in this category continue to expand available options.
Lighting Geometries for Machine Vision Applications Careful selection of lighting geometry is paramount for isolating features of interest based on reflection physics. Geometries are primarily defined by the angle of light relative to the object's surface plane. Understanding these different lighting techniques helps you find the optimal solution for your specific inspection challenge.
Bright Field Illumination for Even Background Coverage Bright Field (BF) is the most commonly applied lighting geometry, creating an even background that simplifies image processing.
BF lighting involves mounting and orienting lights between 45 and 90 degrees from the imaging surface. It's utilized for general surface inspection, dimensional tasks, and creating contrast on relatively flat surfaces. Light reflects primarily back toward the camera lens, resulting in a bright overall image.
BF lighting can be categorized by the solid angle subtended by the light source:
Partial or Directional BF: Sources such as bar lights, spot lights, or ring lights placed at significant working distance present a relatively small solid angle. This directional lighting emphasizes topography and creates shadows, useful for highlighting raised features or edges.Full Bright Field: Sources like diffuse domes, flat arrays, or coaxial diffuse lights subtend a large solid angle. Full BF sources are most effective when placed close to the inspection surface. This proximity creates highly diffuse light projection, essential for minimizing glare and hot spots on reflective or widely varying surface textures and elevations.Dark Field Illumination for Surface Defect Detection Dark Field (DF) illumination is a specialized technique highly effective for detecting subtle surface flaws —a critical capability in many machine vision applications.
DF lighting involves orienting lights at a low angle, typically between 0 and 45 degrees off horizontal. When imaging a smooth, highly reflective surface, flat areas reflect the low-angle light away from the camera, causing the background to appear dark (the "dark field").
When a micro-defect such as a scratch, pit, or engraving is present, its microscopic structure scatters the incident light. Since the camera is positioned outside the main path of reflection, it captures this scattered light from the defect, which appears as a bright feature on the dark background. This makes Dark Field lighting significantly more effective for defining small defects than Bright Field lighting, which often struggles to define fine surface features due to overall surface brightness.
A simple change in light pattern—switching from a bright field ring light to a low angle linear dark field light—can create a vastly more effective and robust inspection. If you've been struggling with inconsistent scratch detection, this geometry change alone often solves the problem without touching the camera or software. Pro tip: always test dark field geometry on reflective surfaces before investing in more complex solutions.
Full Diffuse and Coaxial Techniques Diffuse dome lighting provides a hemispherical solution with a near-shadowless environment utilizing a large solid angle. It's essential for inspecting curved or non-uniform objects where traditional directional lighting would create unwanted hotspots or severe gradients. By scattering light, the dome effectively deemphasizes sharp details and transforms the appearance of uneven surfaces into a consistent, matte finish for stable image analysis.
Coaxial diffuse lighting projects light downward through a beamsplitter, aligning the light path coaxially with the camera's optical axis. It's used exclusively as a Full Bright Field source and is ideal for imaging highly reflective, mirror-like flat surfaces (semiconductor wafers or polished metal) where it provides uniform, on-axis illumination.
Backlighting Backlighting involves positioning a flat, diffuse light source directly behind the target object. This geometry generates a stark silhouette with maximum contrast and extremely clear edges. Backlighting is the optimal solution for precise dimensional measurements, inspection for presence or absence of holes, and robust edge detection.
Geometry Selection Matrix for Vision Lighting Match surface characteristics to optimal lighting geometry:
Surface Characteristic
Feature of Interest
Recommended Geometry
Mechanism / Objective
Matte / Diffuse
Dimensional measurement, part presence, uniform color
Bright Field (Full or Partial, 45°–90°)
Uniform illumination; maximizing diffuse scatter return.
Highly Specular / Flat
Surface scratches, micro-defects, etching, text
Low-Angle Dark Field (0°–45°)
Specular light reflected away; defects scatter light into camera (bright defects on dark background).
Curved / Mixed Reflectivity
Shape confirmation, elimination of hot spots / glare
Diffuse Dome / Full Bright Field
Large solid angle diffuses light, making uneven surfaces appear matte.
Edge / Profile
Dimensional verification, hole inspection
Backlighting
Creates maximum silhouette contrast and clear edges for robust measurement.
Flat, Mirror-like
Alignment marks, highly reflective flat metal
Coaxial Diffuse
Uniform on-axis light minimizes reflection gradients on mirror surfaces.
Advanced Contrast Engineering via Filtering and Polarization The fourth cornerstone, Filtering, provides sophisticated control over light's spectral properties and directionality, manipulating light after it leaves the source but before it reaches the sensor. These techniques assist in solving the most challenging vision problems.
Wavelength Control: Color and Bandpass Filters Color filters exploit differential absorption, even with monochrome cameras. By selecting a filter that passes a light color opposing the color of the feature, the feature absorbs the light and appears dark, maximizing contrast. Using a red filter with a red light source makes red print appear bright (reflection), while using a blue filter would make the same red print appear dark (absorption).
Bandpass filters are essential for highly controlled industrial environments. These filters block everything except a narrow wavelength band—when matched to your LED's specific output, they dramatically improve signal quality while suppressing ambient light interference. This simultaneously maximizes the efficiency of your intended light signal and blocks broadband ambient contamination, significantly improving signal-to-noise ratio and increasing system robustness.
If you've seen performance drift over the course of a day or noticed the system behaves differently near windows or under different facility lighting, bandpass filters paired with appropriate LED wavelengths often eliminate these frustrating variables. This is particularly important in facilities with variable ambient conditions.
Polarization in Machine Vision A polarizer works like polarized sunglasses for your camera—it blocks glare from specific angles while allowing useful light through. This technique is color-agnostic, making it effective for both monochrome and color imaging systems.
Glare elimination is the primary industrial application of polarization. It eliminates specular reflection from highly reflective materials like polished metal, plastic packaging, or glass. By placing a rotatable polarizing filter on the camera lens, you can empirically determine the optimum angle that blocks unwanted directional reflection, achieving maximum contrast with zero observable glare.
Advanced polarization applications include managing ambient light contamination. If unwanted environmental light contributes polarized reflections, a second polarizing film can be strategically placed in the environment to filter this light before it interacts with the object and camera. Polarization also reveals internal stresses within transparent materials such as molded plastics or glass—a capability crucial for quality assurance focused on material integrity. Because the optimal angle depends on specific geometry of light, the object's micro-texture, and camera placement, tuning the polarizer often requires on-site, iterative adjustment rather than purely theoretical calculation.
Filter Application Summary At a glance—filter types and their applications:
Filter Type
Target Wavelength Control
Primary Industrial Function
Effect on Image Quality
Polarizing Filter
Directional vibration
Eliminating specular glare (reflections)
Significantly enhances contrast by removing high-intensity reflection noise.
Bandpass Filter
Narrow spectrum match (e.g., 660 nm)
Suppressing non-target ambient light; isolating specific light sources
Cleaner image; maximized signal-to-noise ratio (SNR).
Color Filter (e.g., Red)
Broadband blocking / specific reflection
Enhancing contrast on specific colored features by differential absorption
Dramatically increases visibility of print or color codes on a background.
Longpass Filter
Shorter wavelength blocking
Revealing features printed in IR inks; reducing scattering / haze
Spectral shift; used for specific material transmission analysis.
Implementation, Robustness, and Maintenance Industrial deployment requires sustained image stability and component longevity, necessitating stringent controls over uniformity, thermal dissipation, and electrical stability. Understanding the importance of these factors helps ensure your system arrives at production-ready status quickly.
Achieving Illumination Uniformity Uniformity refers to even and consistent distribution of light intensity across the entire field of view. It's a prerequisite for reliable inspection, particularly in modern systems employing complex machine learning or measurement algorithms.
Inconsistent illumination introduces shadows, glare, or intensity gradients that vision algorithms misinterpret as genuine defects or that cause poor contrast. This leads to unreliable inspection, increased false positives, and greater system downtime for recalibration. You end up chasing phantom defects or, worse, missing real ones because the baseline keeps shifting.
Achieve high uniformity using large solid angle light sources such as dome lights, ring lights, or integrating spheres, which scatter light widely to minimize hot spots and harsh shadows. Uniformity is essential because non-uniformity unnecessarily increases variance in training data for AI-driven inspection solutions, undermining efforts to simplify algorithms via physics-based pre-processing. An even background is particularly critical for accurate feature detection and measurement.
Thermal Management: Protecting LED Lifespan and Stability Light-emitting diodes generate intrinsic heat, which if not properly dissipated, significantly reduces performance and lifespan. High junction temperatures accelerate the degradation of LED components and drivers, leading to inconsistent light output and premature failure—a consideration that matters regardless of your initial investment in machine vision lighting products.
In high-power, high-performance applications that utilize overdrive and strobing, heat generation is substantial. Placing high-power control electronics such as boost/buck drivers and capacitors in close proximity to the LED array restricts thermal dissipation routes.
For this reason, discrete controllers remotely located from the light head represent best practice. Discrete controllers allow for dedicated thermal management and isolate heat generated by power electronics, ensuring LED operating temperature remains stable and consistent, thereby preserving light output reliability and longevity.
You've likely seen systems where performance degrades subtly over months—output intensity drops, color shifts slightly, timing becomes less precise. This is almost always thermal management failure. Proper thermal architecture costs more upfront but eliminates recalibration and premature replacement.
System Power Management and Industrial Environment Resilience Industrial facilities expose lighting systems to electrical and environmental threats that compromise stability. Taking these factors into account during system design is important for long-term reliability.
Power fluctuation mitigation: Industrial power grids are prone to "dirty power"—surges and voltage fluctuations caused by unbalanced loads, faulty connections, or external events like lightning strikes. These events can damage sensitive lighting components and degrade performance over time. Implement specialized protective infrastructure, including surge protection devices (SPDs) and voltage regulators, to divert excess voltage and ensure stable, consistent power supply to the lighting system.
Environmental resilience: Lighting fixtures must be rated and designed to manage harsh conditions. High heat accelerates degradation, while cold, moist environments can cause corrosion, reduced light output, and material brittleness. Select industrial-grade fixtures with effective heat dissipation features for sustained operation. This is particularly critical in logistics and warehouse environments with extreme temperature ranges.
Standards and Objective Characterization (EMVA 1288) The EMVA 1288 standard provides a unified methodology for measuring and comparing machine vision camera performance across manufacturers. It creates a consistent language for sensor specifications, eliminating marketing claims and enabling objective comparisons.
While EMVA 1288 focuses on cameras, it's vital for lighting selection because all performance metrics are tied to specific test wavelengths. By consulting EMVA 1288 data sheets, you can select lighting wavelengths that match your sensor's peak sensitivity and lowest noise characteristics. This approach maximizes overall system efficiency and ensures predictable, repeatable performance. It helps customers find vision lighting products that truly meet their requirements based on measurable, standardized data.
Stop Treating Machine Vision Lighting as an Afterthought You've likely seen this pattern: install the camera and lens, mount whatever ring light seemed reasonable, spend weeks tweaking thresholds and filters in software, then watch the system deliver inconsistent results. The vendor suggests a camera upgrade. The software team proposes more sophisticated algorithms. Meanwhile, the root cause—poorly engineered lighting—never gets the systematic attention it deserves.
The solution isn't more computational horsepower. It's treating lighting as what it actually is: your primary front-end pre-processing tool. When you engineer lighting with the same rigor you apply to mechanical design or process control—using the three-stage framework, applying the Four Cornerstones systematically, and building in industrial robustness from day one—you get consistent, high-contrast images that translate directly into reliable inspection results. The importance of this approach becomes clear the first time your system runs an entire shift without false rejects.
